High quality electrical equipment 5A switching power supply with low price
Product Description
High quality electrical equipment 5A Switching Power Supply with low price

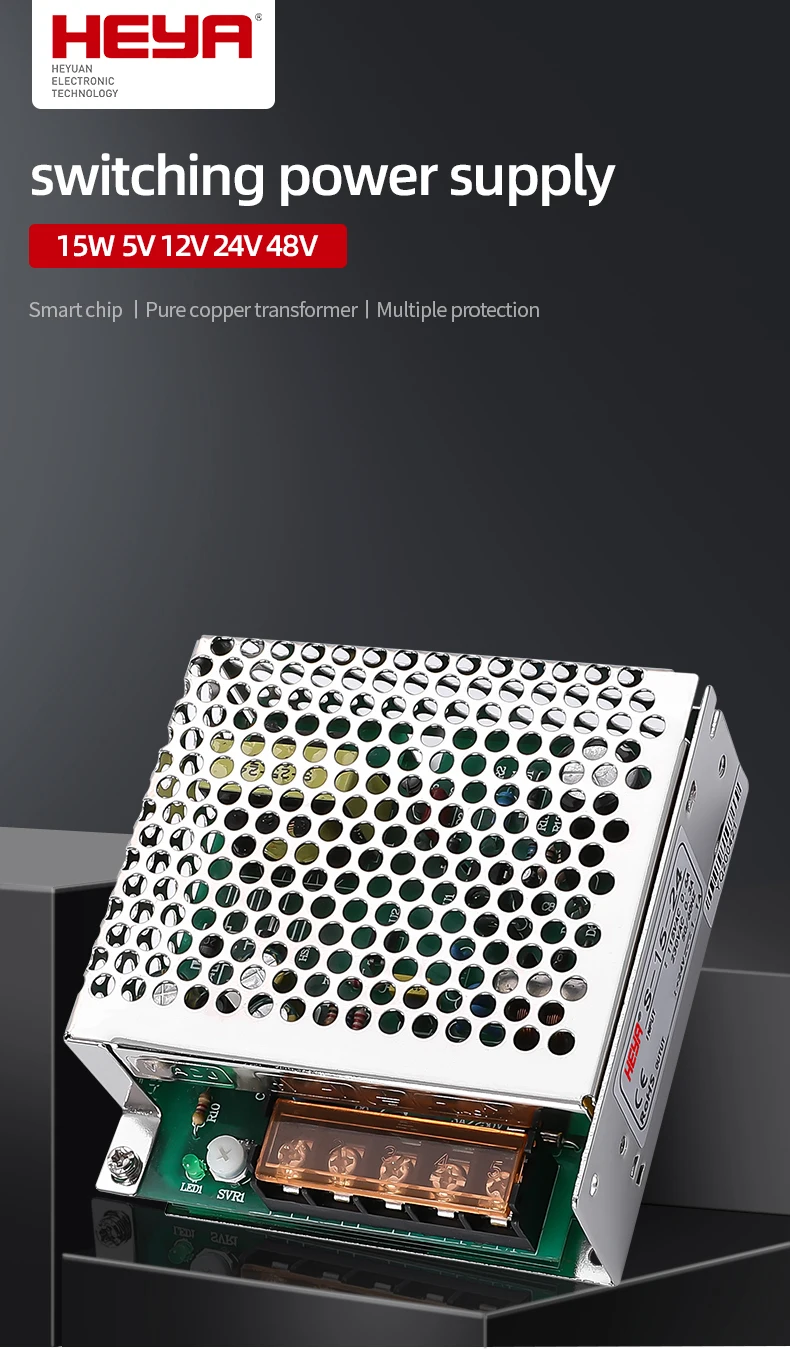

High quality AC/DC S-15 Switching Power Supply 5v12v 15v 24v
1.Features
1. Input voltage selected by switch
2. Protection: short-circuit/ over-load/ over-voltage protection
3. Cooling by air
4. 100% full load burn-in test
5. 1 year warranty
2. Specification
| S-15 15W switching power supply | ||||||
| project | Technical index | |||||
| output | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 2A | 1.25A | 0.62A | 0.42A | 0.31A | |
| Rated power | 10W | 15.6W | 16.8W | 15.12W | 14.88W | |
| Ripple and noise | <50mV | <120mV | <150mV | <240mV | <240mV | |
| Voltage accuracy | ±2% | ±1% | ||||
| Output voltage regulation range | ±10% | |||||
| Load adjustment rate | <±1.5% | <±0.5% | <±0.5% | <±0.5% | <±0.5% | |
| Linear adjustment rate | <±0.5% | |||||
| input | overload protection | 85-132VAC/176-264VAC 47Hz~63Hz (254VDC~370VDC) | ||||
| Efficiency (typical) | >78% | >82% | >84% | >84% | >84% | |
| Working current | ||||||
| Impulse current | 110VAC 18A,220VAC 36A | |||||
| Start, rise, hold time | 200ms,50ms,20ms :220VAC | |||||
| protect | overload protection | ≥ 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||||
| Short circuit protection | VO drops to undervoltage point to close output | |||||
| Environmental Science | Working temperature and humidity | -10℃~+50℃;20%~90RH | ||||
| Storage temperature and humidity | -20℃~+85℃;10%~95RH | |||||
| Safety regulations | Withstand voltage | Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute | ||||
| Leakage current | 5mA at 1.5kVac input-output | |||||
| Leakage current | Input output at 220VAC < 1mA | |||||
| Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||||
| Other | size | 99*97*35mm | ||||
| Net weight / gross weight | 284.5/311.6g | |||||
| Remarks | ||||||
4.Please Note
1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
6. C2,3,6 must be knocked down.
High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Product Categories : Switching Power Supply > S
