Home > Products > SLYP > Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

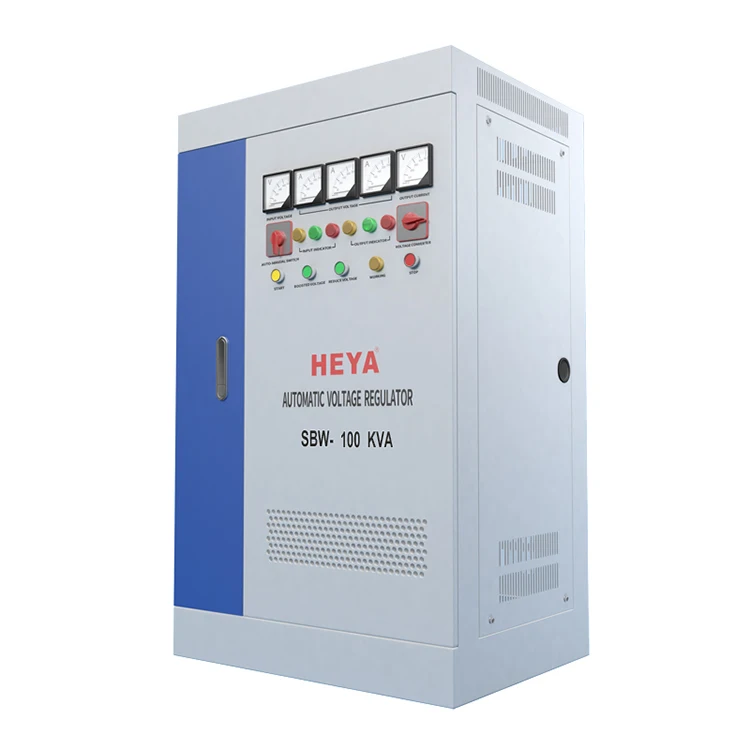

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

Product Description

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic voltage regulator Stabilizers With Bypass

(SBW-30KVA~2000KVA)

Product Description

1.General

  DBW/SBW Series full automatic compensated voltage stabilizers is an energy-saving new product developed by our company absorbing the advanced technology of international same product,with the functions of over/under-voltage protection,delay and error protection.It has advantages of small volume,light weight,large capacity,high efficiency,wide range,high precision,strong protection,without waveform distortion,reliable operation and easy installation,etc.

2.Application

   Widely used in post and telecommunications,department stores,elevators,hospitals,schools,printing,securities and other occasions where all needs normal voltage to ensure,such as workshop mines medium enterprises,some of the important equipment and computer power and support.

3.Technology parameter

Input voltage

Single Phase:175-265V  Three Phase four-line

175-265V(phases voltage) 304-456V(Line-voltage)

154-286V(phases voltage) 270-490V(Line-voltage)

Output voltage

Single phase:220V;Three phase:380V

Output deviance

1-5%(Adjustable)

Frequency

50Hz/60Hz

efficiency

95%(Power>50KVA)

Response time

1.5S

Ambient temperature

-10°C~+40°C

Insulation resistance

5MΩ

Electricalintensity

Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min

Overload

Double rated current,one min

Waveform distortion

Non-lack fidelity waveform

Protect

Over-voltage,over-current,feed phases



Spec Model

Unit(pcs)

Package size(mm)

G.W.(Kg)

SBW-50K

1

800x620x1350

350

SBW-60K

1

800x620x1350

370

SBW-100K

1

850x620x1500

420

SBW-150K

1

1000x720x1700

550

SBW-180K

1

1000x720x1700

570

SBW-200K

1

1000x720x2000

630

SBW-225K

1

1100x800x1800

660

SBW-250K

1

1100x800x2000

700

SBW-300K

1

1100x800x2100

740

SBW-320K

1

1100x800x2100

760

SBW-400K

1

1000x800x2100/2Cabinetry

1100

SBW-500K

1

1000x800x2100/2Cabinetry

1500

SBW-600K

1

1000x800x2100/2Cabinetry

2200

SBW-800K

1

850x1000x2200/3Cabinetry

2800

SBW-F-1000K

1

850x1000x2200/3Cabinetry

3500

SBW-F-1200K

1

850x1000x2200/3Cabinetry

4100

SBW-F-1600K

1

110x1100x2200/4Cabinetry

5560

SBW-F-2000K

1

110x1100x2200/4Cabinetry

7100

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With BypassAlternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With BypassAlternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With BypassAlternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With BypassAlternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

 Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass





BW-100KVA 3 Phase Imported Pure Copper Column Compensated Automatic Voltage Stabilizer With BypassSBW-100KVA 3 Phase Imported Pure Copper Column Compensated Automatic Voltage Stabilizer With BypassSBW-100KVA 3 Phase Imported Pure Copper Column Compensated Automatic Voltage Stabilizer With Bypass

Application Scenario

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

Contact name: Yoko Zhu
Mob/ WeChat / WhatsApp : 0086-13736244360
Skype ID: live:zyz0219         WeChat ID: zhuyuzhe002        QQ:97033586
Packaging & Shipping

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

Company Frofile

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With BypassAlternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With BypassAlternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

FAQ

Q 1. what'S the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.



Q 2. how's the delivery time ?

A. usually it will take about 10-25 days for production.For sample usually in 1 week.



Q 3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package.
    For big capacity, use strong wooden case for protection.

Q 4. What kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For Relay Type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.

Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 6.Would you accept to use our logo ?
A.Our logo is HEYA.If your order has good quantity,it absolute no problem to do OEM.
   But you use our logo HEYA will be high appreciated.

Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs   and big capacity near 2000pcs.

Q 8.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 9. what kind of certificate you have ?
A. Our company already obtained ISO9001, BV, EAC, SONCAP, CE, PCT, SGS,design and technical patents certificates.

Contact us

Contact person:Yoko Zhu
Mob/WeChat/Whatsapp:008613736244360

Skype: live:zyz0219      WeChat ID:zhuyuzhe002    QQ:97033586

Alternator SBW-100KVA 3 Phase Pure Copper Column Compensated Automatic Voltage Regulator Stabilizers With Bypass

Contact us if you need more details on Compensated Voltage Stabilizer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 100kva Voltage Stabilizer、3 Phase Voltage Stabilizer. If these products fail to match your need, please contact us and we would like to provide relevant information.
